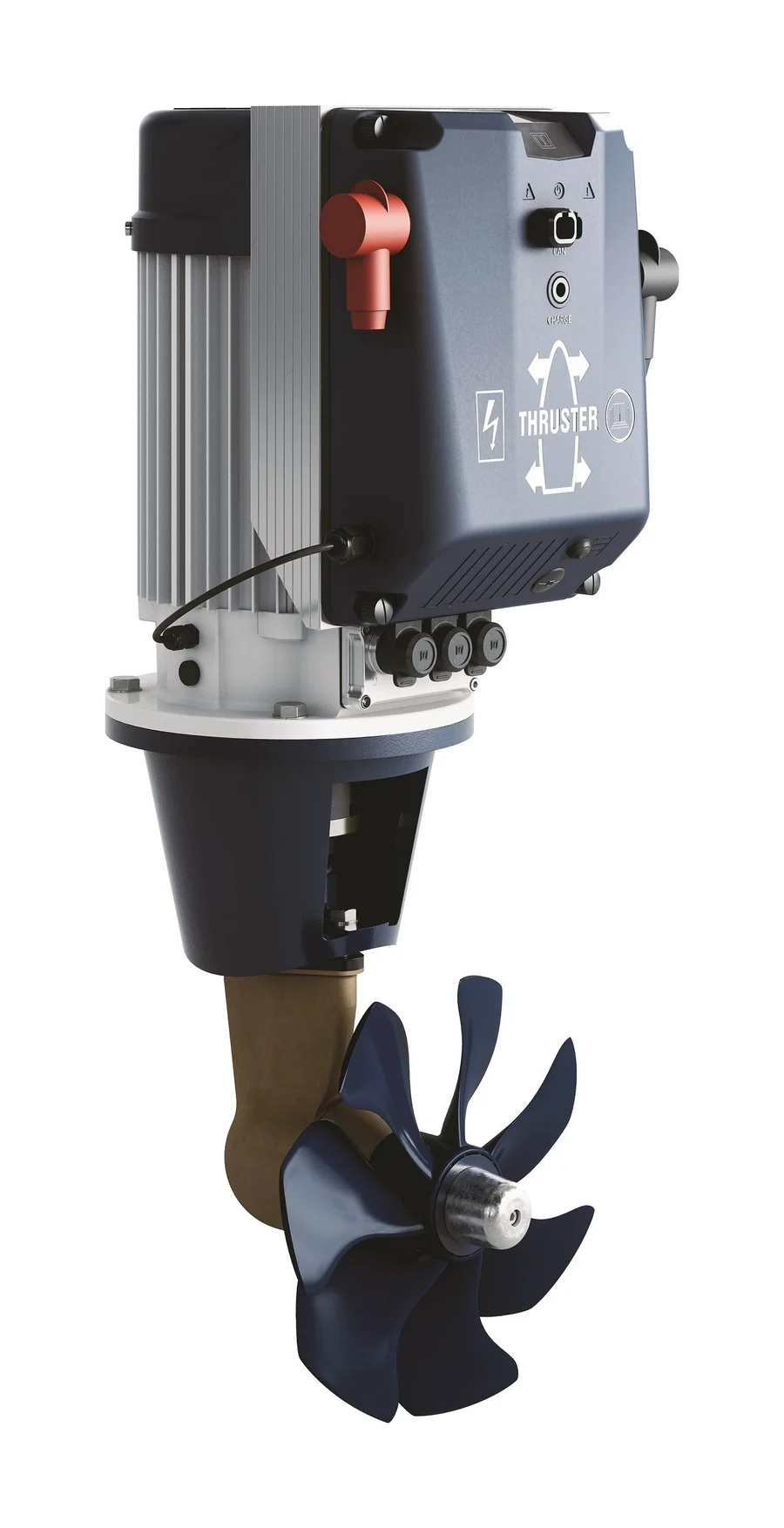

BOW PRO

Brushless. Proportional. Maintenance-free.

Instead of all-or-nothing bursts, BOW PRO lets you dial in exactly the push you need, then hold it. Its brushless induction motor has no carbon brushes to wear, and VETUS rates full-power runtime at 6 to 10 minutes depending on the model.

THRUST: 30-420 kgf
BOATS: 5-40 m
FULL POWER: 6-10 min

Which BOW PRO fits my boat? See all models

MOTORBrushless induction CONTROLProportional V-CAN

Why BOW PRO changes how you dock

Proportional thrust

Vary thrust precisely instead of firing full bursts. Gentle in a calm, firm in a crosswind.

Nothing to service

Brushless induction motor, so there are no carbon brushes to wear out or replace.

Long runtimes

6 to 10 minutes at full power and far longer at part power, with built-in temperature and low-battery protection.

Lock and hold

Lock the thrust at any level and step away from the helm to handle lines single-handed.

Joystick integration

Works with Yamaha, Mercury, Yanmar, Honda and Suzuki joystick systems.

Easy upgrade

Shares tunnel sizes with existing VETUS and many other thrusters, so an upgrade can reuse your tunnel.

BOW PRO BOOSTED

A 24 V thruster on a 12 V boat

Every BOW PRO Boosted has a three-stage DC-to-DC charger built in. It tops up a dedicated 24 V thruster bank from your existing 12 V system, and only draws once your house bank is at a safe level. On bigger boats the same trick charges 48 V from 24 V.

HOUSE BANK

12 V

your existing system

BUILT-IN BOOSTER

3-stage charger

inside the thruster

THRUSTER BANK

24 V

powers the BOW PRO

MODELS AND SPECIFICATIONS

Every BOW PRO, side by side

BOW PRO 12 V (BOWA): runs straight off a 12 V system. The natural upgrade for most boats from 5 to 14 m.

MODEL	THRUST	BOAT LENGTH	TUNNEL	POWER	FULL POWER	MIN. BATTERY	WEIGHT	Enquire
BOWA0301	30 kgf	5-7 m (15-24 ft)	Ø110 mm	1.2-1.6 kW	10 min	1× 90 Ah	24 kg	Enquire about BOWA0301
BOWA0361	36 kgf	6-10 m (20-30 ft)	Ø125 mm	1.2-1.6 kW	10 min	1× 170 Ah	24 kg	Enquire about BOWA0361
BOWA0401	40 kgf	7-11 m (23-36 ft)	Ø140 mm	2.7-3.7 kW	10 min	1× 145 Ah	31 kg	Enquire about BOWA0401
BOWA0421	42 kgf	8-11.5 m (26-37 ft)	Ø125 mm	2.7-3.7 kW	10 min	1× 145 Ah	35 kg	Enquire about BOWA0421
BOWA0571	57 kgf	8-12 m (26-39 ft)	Ø150 mm	2.7-3.7 kW	6 min	1× 185 Ah	35 kg	Enquire about BOWA0571
BOWA0651	65 kgf	8-12.5 m (27-40 ft)	Ø185 mm	2.7-3.7 kW	10 min	1× 125 Ah	35 kg	Enquire about BOWA0651
BOWA0761	76 kgf	10-14 m (30-45 ft)	Ø185 mm	2.7-3.7 kW	6 min	1× 200 Ah	35 kg	Enquire about BOWA0761
BOWA0304	30 kgf	5-7 m (15-24 ft)	Ø110 mm	1.2-1.6 kW	10 min	4× 60 Ah	24 kg	Enquire about BOWA0304
BOWA0364	36 kgf	6-10 m (20-30 ft)	Ø125 mm	1.2-1.6 kW	10 min	4× 60 Ah	24 kg	Enquire about BOWA0364
BOWA0574	57 kgf	8-12 m (26-39 ft)	Ø150 mm	3.1-4.2 kW	10 min	4× 60 Ah	35 kg	Enquire about BOWA0574
BOWA0764	76 kgf	10-14 m (30-45 ft)	Ø185 mm	3.1-4.2 kW	10 min	4× 60 Ah	35 kg	Enquire about BOWA0764
BOWB057	57 kgf	8-12 m (26-39 ft)	Ø150 mm	3.1-4.1 kW	10 min	2× 90 Ah	28 kg	Enquire about BOWB057
BOWB065	65 kgf	8-12.5 m (27-40 ft)	Ø185 mm	3.1-4.1 kW	10 min	2× 90 Ah	29 kg	Enquire about BOWB065
BOWB076	76 kgf	10-14 m (30-45 ft)	Ø185 mm	3.1-4.1 kW	10 min	2× 108 Ah	29 kg	Enquire about BOWB076
BOWB090	90 kgf	11.5-17 m (36-55 ft)	Ø185 mm	5.7-8 kW	10 min	2× 145 Ah	33 kg	Enquire about BOWB090
BOWB110	110 kgf	11.5-18 m (36-56 ft)	Ø185 mm	5.7-8 kW	10 min	2× 170 Ah	33 kg	Enquire about BOWB110
BOWB130	130 kgf	12.5-18 m (40-60 ft)	Ø185 mm	5.7-8 kW	10 min	2× 185 Ah	33 kg	Enquire about BOWB130
BOWB150	150 kgf	12.5-18 m (40-60 ft)	Ø250 mm	5.7-8 kW	6 min	2× 170 Ah	38 kg	Enquire about BOWB150
BOWB180	180 kgf	15-20 m (44-68 ft)	Ø250 mm	11-15 kW	10 min	4× 185 Ah	45 kg	Enquire about BOWB180
BOWB210	210 kgf	16-22 m (50-75 ft)	Ø250 mm	11-15 kW	10 min	4× 185 Ah	45 kg	Enquire about BOWB210
BOWB285	285 kgf	20-28 m (65-90 ft)	Ø300 mm	18.4-25 kW	10 min	4× 220 Ah	95 kg	Enquire about BOWB285
BOWB300	300 kgf	25-30 m (80-100 ft)	Ø300 mm	18.4-25 kW	10 min	4× 220 Ah	95 kg	Enquire about BOWB300
BOWB320	320 kgf	25-32 m (80-105 ft)	Ø300 mm	18.4-25 kW	10 min	4× 220 Ah	95 kg	Enquire about BOWB320
BOWB385	385 kgf	30-35 m (100-120 ft)	Ø400 mm	18.4-25 kW	6 min	4× 220 Ah	120 kg	Enquire about BOWB385
BOWB420	420 kgf	33-40 m (110-130 ft)	Ø400 mm	18.4-25 kW	6 min	4× 220 Ah	120 kg	Enquire about BOWB420

Specifications from the VETUS Catalogue 2026-2027. Battery figures are VETUS minimums (C20); we size the bank to your boat when we quote.

Pick your panel

BPPJA

Proportional joystick

Lock-and-hold at any thrust. Aluminium bezel, IP65.

BPPPA

Proportional paddle

Intuitive paddle control of proportional thrust. Aluminium bezel, IP65, Ø75 mm cut-out.

DBPPJA

Double joystick

Bow and stern on one panel, separately or together. Rotate to spin the boat on its axis.
